When developing a private label mineral sunscreen, choosing between Zinc Oxide and Titanium Dioxide is the most critical technical decision a brand owner will make. Make the wrong choice, and your formulation risks failing broad-spectrum regulatory tests or alienating consumers with an unblendable, chalky white cast. At Guangzhou Rysun Biotechnology Co., Ltd., we don't just mix mineral powders; our Research Institute engineers high-performance UV shields. Supported by 105 product patents and over a decade of OEM manufacturing experience, we break down the exact cosmetic chemistry, formulation mechanics, and UV spectrum data you need to select the perfect physical filter for your brand's next SPF launch.

Zinc Oxide vs. Titanium Dioxide in OEM Sunscreen Manufacturing

When developing a clean, reef-safe, or mineral-based sun care line, brand owners are immediately faced with a critical formulation decision: Should you use Zinc Oxide, Titanium Dioxide, or a combination of both?

Both are FDA-approved, GRASE (Generally Recognized as Safe and Effective) physical UV filters. Both sit on top of the skin to reflect ultraviolet light, and both are highly sought after by today’s conscious consumers. However, from a chemical, aesthetic, and manufacturing standpoint, they perform very differently.

At Guangzhou Rysun Biotechnology Co., Ltd., our Research Institute—founded in 2015 and powered by over 20 elite scientists across biology, chemistry, and dermatology—has spent years mastering both ingredients. With 105 proprietary product patterns and 253 intellectual properties, we guide our B2B partners through the complexities of SPF formulation.

Here is our definitive OEM guide to understanding the differences between Zinc Oxide and Titanium Dioxide, helping you choose the best active ingredient for your private label skincare line.

Understanding the UV Spectrum: The Key Difference

To understand which mineral is better for your product, you must understand what they protect against:

• UVB Rays: These affect the top layer of the skin, causing redness and sunburns.
• UVA Rays: These penetrate deep into the dermis, causing premature aging, wrinkles, and deep cellular damage. (UVA rays are present year-round, even on cloudy days).

The primary difference between these two minerals lies in their ability to block the UVA spectrum.

Zinc Oxide: The Broad-Spectrum Heavyweight

Zinc Oxide (ZnO) is widely considered the gold standard in mineral sun care.

• The Pros for Your Brand: Zinc Oxide is a true broad-spectrum filter. It provides exceptional, uniform protection against both UVB and the entire UVA spectrum (UVA1 and UVA2) all by itself. Additionally, it is highly anti-inflammatory, making it perfect for sensitive skin, rosacea, and baby care lines.
• The Formulation Challenge: Because it covers the entire UV spectrum, it requires a higher concentration (typically 10% to 20%) to achieve a high SPF rating. Without advanced micronization technology, high percentages of zinc oxide can leave a heavy white cast and a pasty texture.

Titanium Dioxide: The Lightweight UVB Specialist

Titanium Dioxide (TiO2) is an incredibly efficient UV reflector, but its protection profile is slightly narrower.

• The Pros for Your Brand: Titanium Dioxide is highly effective at blocking UVB rays and short UVA2 rays. Because of its high refractive index, it is excellent at boosting SPF ratings while maintaining a lighter, thinner cosmetic feel compared to raw zinc. It is fantastic for daily-wear lotions and mattifying products.
• The Formulation Challenge: Titanium Dioxide does not offer adequate protection against long UVA1 rays. Therefore, if you use it as your primary filter, it must be paired with other UV filters (chemical or physical) to achieve the broad-spectrum claims required by the FDA and global regulators. It also has a notoriously high white, chalky finish if not milled properly.

Understanding the UV Spectrum: The Titanium Dioxide UVA Gap

While Titanium Dioxide is incredibly efficient at blocking UVB (the rays that cause sunburns), it suffers from a significant drop-off in the long-wave UVA-I spectrum (340nm to 400nm). This is a critical formulation hurdle. To legally claim 'Broad Spectrum' on your packaging in the US and EU, a sunscreen must pass the Critical Wavelength test, achieving a minimum wavelength of 370nm. Because Titanium Dioxide cannot adequately cover this range on its own, formulating exclusively with TiO₂ will often result in failed broad-spectrum testing unless it is heavily synergized with Zinc Oxide or chemical UV filters

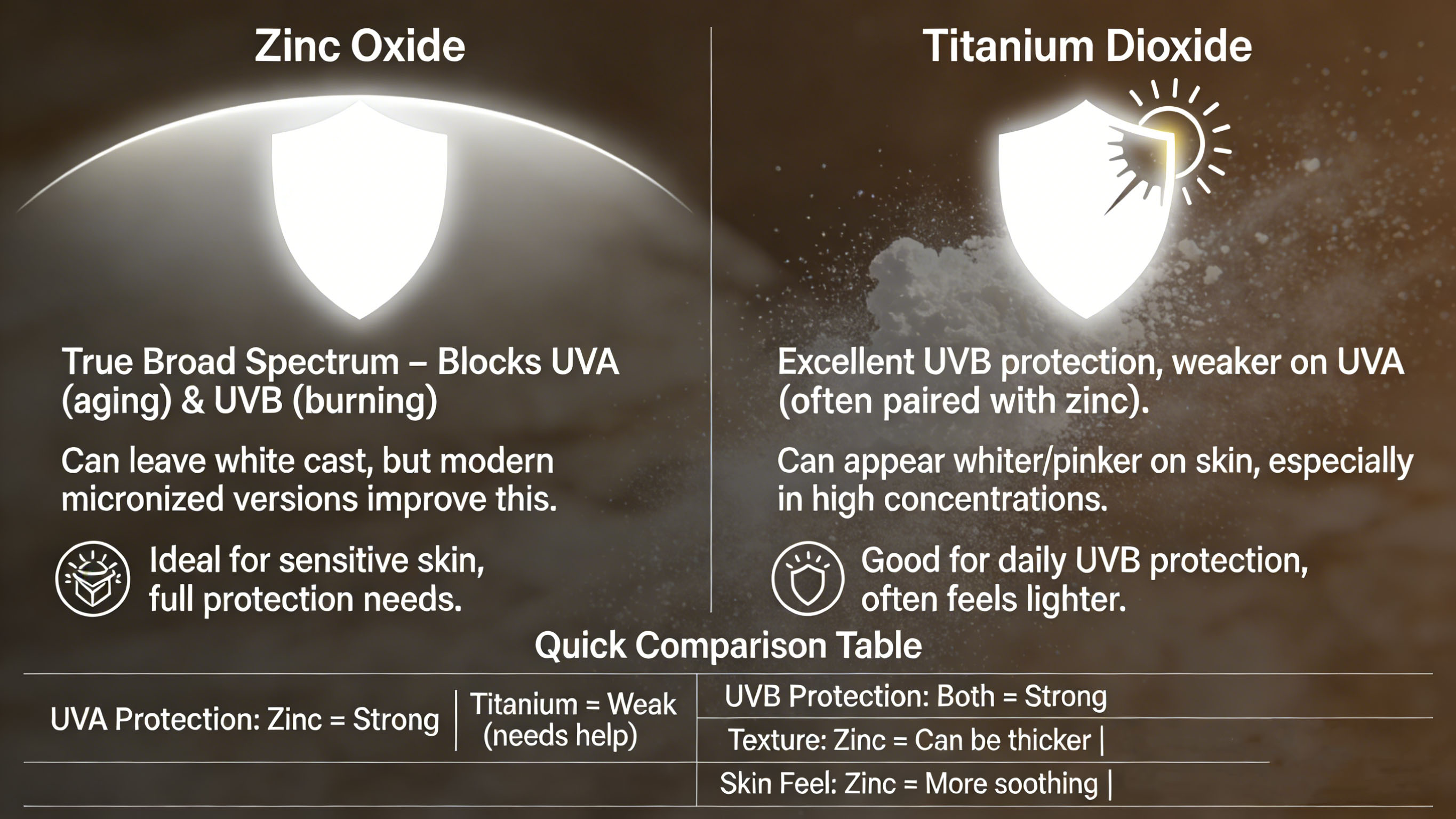

Technical Comparison Table of Zinc Oxide and Titanium Dioxide

Which Mineral Should You Choose for Your Private Label Line?

The right choice depends entirely on your target audience and product positioning. Here is what Rysun’s R&D team recommends:

• Choose 100% Zinc Oxide if: You are launching a premium anti-aging face sunscreen, a baby/pediatric sunscreen, or a sensitive skin product. Zinc offers the best standalone broad-spectrum protection and is highly soothing.
• Choose a Zinc/Titanium Blend if: You are creating an active/sport sunscreen or a high-SPF body lotion. Blending the two allows formulators to hit SPF 50+ while balancing the texture, ensuring it isn't too heavy while still providing robust broad-spectrum coverage.
• Choose Titanium Dioxide (Blended with Chemical Filters) if: You are formulating a hybrid sunscreen where you want the ultra-lightweight, invisible cosmetic elegance of a chemical sunscreen, but want to boost the SPF rating using a physical mineral.

The Rysun Formulation Advantage

Whether you choose Zinc Oxide or Titanium Dioxide, the biggest hurdle for brand owners is overcoming the "white cast."

At Rysun, our formulation experts utilize tightly controlled surface-treated minerals—coating the powders with hydrophobic layers like silica or dimethicone to reduce friction. By processing these customized dispersions through our state-of-the-art high-shear homogenization equipment, we ensure both Zinc Oxide and Titanium Dioxide particles remain perfectly suspended in the carrier base. Furthermore, every single batch undergoes up to 50 strict inspection procedures, ensuring perfect stability, zero separation, and an elegant, sheer finish on all skin tones.

With over 10 years of experience, exporting to 50+ countries, and partnering with 700+ brands, we provide complete, turnkey OEM/ODM manufacturing. Contact Rysun Biotechnology Today to consult with our R&D experts and start sampling the world's finest mineral sunscreens.
